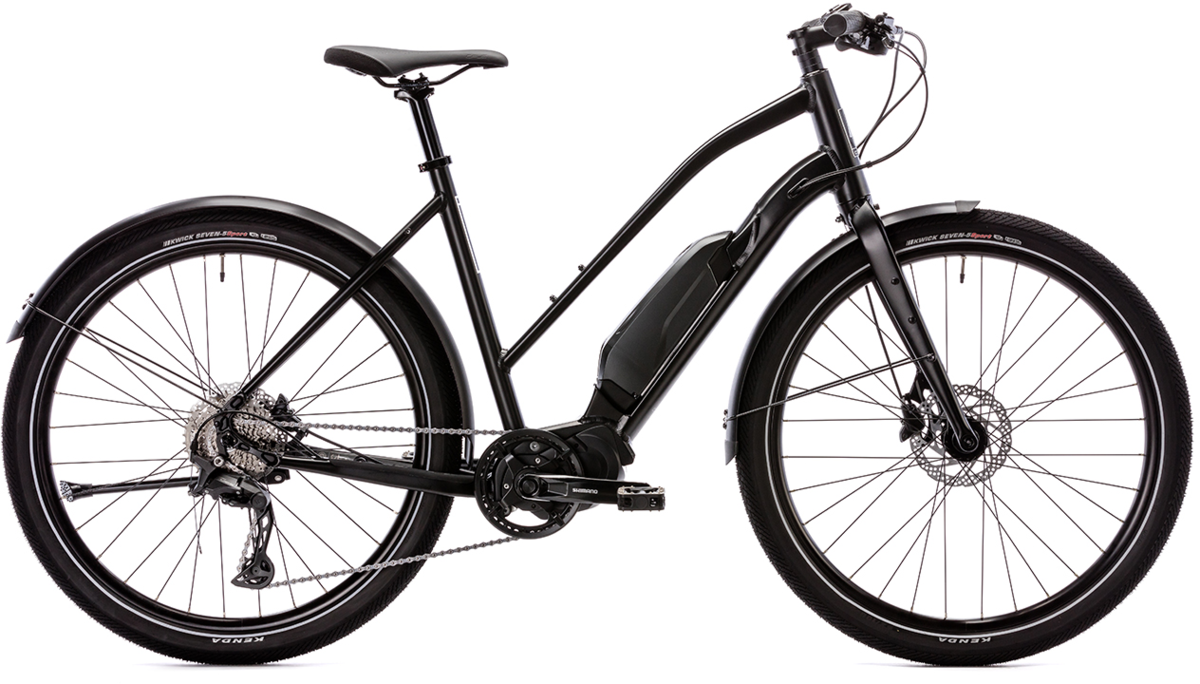

Opus E-Big City ST
$2,999.99
Details
THE CITY JUST GOT SMALLER
Introducing the Opus E-Big City, a remarkable collection of e-bikes designed to enhance your urban cycling experience. With their balance of performance and comfort, these bikes offer the ideal solution for both urban commuters and big-city explorers. Enjoy the effortless rides, Shimano quality and sustainable transportation that the Opus E-Big City delivers.
Key elements:
- Step-thru frame for everyone to enjoy
- Lightweight 6061 aluminum Fork
- Shimano CUES 1x9 drivetrain
- Shimano MT201 hydraulic disc brakes
- Shimano E-5000 motor and E-8014 418Wh semi-integrated battery
| Size | Small | Medium | Large |
|---|---|---|---|
| Rider’s height (± 5CM) | 155 | 165 | 178 |
| Rider’s height (± 2″) | 5’1″ | 5’5″ | 5’10” |
| Seat tube (mm) | 430 | 470 | 510 |
| Top tube (mm) | 540 | 582 | 619 |
| Head tube (mm) | 155 | 180 | 200 |
| Head angle | 71 | 71 | 71.5 |
| Seat angle | 74 | 73.5 | 73 |
| Chain stay (mm) | 460 | 460 | 460 |
| BB drop (mm) | 65 | 60 | 60 |
| Stack (mm) | 578 | 598 | 623 |
| Reach (mm) | 380 | 405 | 428 |
| Stand over (mm) | - | - | - |
| Handlebar width (mm) | 620 | 620 | 620 |
| Stem length (mm) | 70 | 70 | 80 |
| Crank length (mm) | 170 | 170 | 170 |
Specs
| Frame | Meta 30 aluminum |
|---|---|
| Fork | Aluminum tapered 1-1/2 to 1-1/8 in |
| Rims | Weinnman U32 TL |
| Hubs | Formula/Shimano |
| Tires | Kenda Kwick Seven.5 27.5 x 2.4 |
| Crankset | Shimano FC-E5000 |
| Shifters | Shimano CUES U4000 9 |
| Rear Derailleur | Shimano CUES U3020 |
| Cassette/Freewheel | Shimano 11-36 |
| Chain | KMC eGlide EPT |
| Brakes | Shimano BR-MT201 hydraulic disc |
| Brake Levers | Shimano BL-MT201 |
| Handlebars | Promax 620mm 35º backsweep |
| Tape/Grips | Velo ERGO dual density |
| Stem | Promax 70/80mm |
| Headset | FSA Orbit integrated sealed |
| Seatpost | Promax 31.6 x 350mm |
| Saddle | Opus E-City |
| Pedals | FPD NW-247 |
| Motor | Shimano motor E-5000 250W 40Nm |
| Battery | Shimano E-8014 418Wh 36V 11.6Ah battery |
| Controller/Display | SC-E5000 Switch with integrated display |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Stealth Black / Small / 27.5-inch | 624316148791 | OP-EBCST2-S |
| Stealth Black / Medium / 27.5-inch | 624316148807 | OP-EBCST2-M |
| Stealth Black / Large / 27.5-inch | 624316148814 | OP-EBCST2-L |
