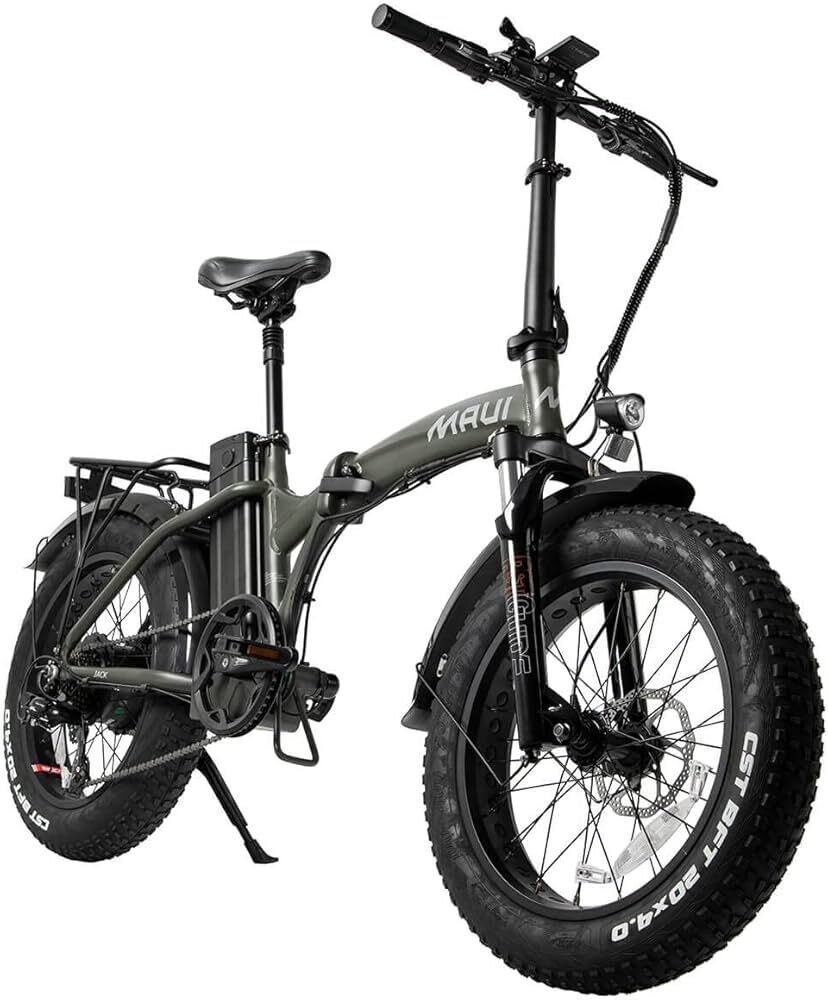

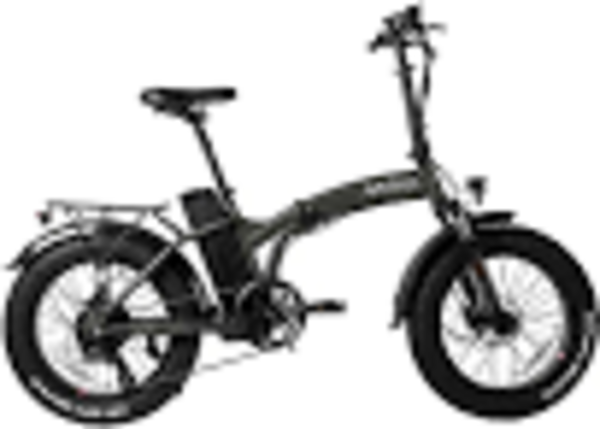

Maui JACK | FOLDING E-BIKE

The JACK model from Maui Bikes, a classic from the brand, has been completely redesigned for the 2023 model year. This folding electric bike is powered by a 500W Bafang motor and a Samsung battery, providing optimal power. Equipped with hydraulic brakes, the JACK adds a pleasant dimension to your rides. It is suitable for both urban commutes and trail rides, thanks to its front suspension, 100mm wide tires, and mudguards.

DETAILS
- Range: 70km (Optimal conditions)
- Charging time: 7-8hr
- BAFANG motor, RM G060, 500, 48V/500W, M12*13G*36H
- KAIHUA accelerator, EA10 half-throttle 36V

SPECIFICATIONS
- Gender : Unisex
- Frame Material : Aluminum
- Wheel Size : 20 inches
- Battery : SAMSUNG, 48V, 15AH, battery cell, 5000MAH
- Battery Capacity : 5000MAH
- Battery Type : SAMSUNG, 48V, 15AH, 5000MAH
- Brake Levers : Base and lever in alloy with electric function
- Brakes : XIAODIAN, XD-E300, hydraulic disc brake
- Chain : KMC, z7, steel, 1/2"*3/32"
- Brake Type : Disc
- Recommended UseGravel, Commuting, Travel
- Charge Time : 7-8hr
- Charger : ATN, 48v, with CE certificate
- Crankset : PROWHEEL, PRO-546PP-3, 1/2*3/32"*46t*170l, with black PP cover
- Display Unit : KT, KT-LCD5
- Drive Unit : BAFANG, RM G060, 500, 48V/500W, M12*13G*36H, type brushless
- Drive Unit Power : KAIHUA, EA10 half throttle 36V
- Fork : RST, guide, 20" suspension. Alloy crown, alloy leg with lock.
- Frame : CDC, alloy, 20", C-T: 370mm, foldable type, battery inside the frame
- Handlebars : YC-B101, alloy, type flat, W : 560mm*2.0t, f25.4mm, 6°
- Hubs : Front Hub: Alloy, 3/8" * 13g * 36h * 135 * 175, disc brake nut type.
- Pedals : FEIMIN, FP-871, folding type, black pp, with ball and reflector
- Cassette : SHIMANO, AMFTZ00, multiple freewheel, cog, MF-TZ510-7, 7-speed, 14-16-18-20-22-24-28t, bulk
- Rear Derailleur : SHIMANO, ARDTY300D, RD-TY300, TOURNEY, 6/7 speeds, direct attachment, bulk type
- Rims/Wheels : CDC, LYE-033, alloy, single-wall, f30mm, 20" * 3.5-4.0 * 13g * 36h, H: 19, W: 75, A/V.
- Saddle : YBT, YBT-6566, black fabric with bow and clip, 275*155mm
- Seatpost : SP-302, alloy, f27.2*300mm*2.2t, without clamp
- Shifters : SHIMANO, ASLTX50R7AT, 7-speed index thumb shifter
- Spokes : 13g, black steel spokes with brass nipples.
- Stem : KS02/K07, alloy, single folding stem
- Tape/Grips : XHH, XH-G56BL, rubber, 130mm/90mm
- Tires : CST, C-1752, bft, 20×4.0, 60tpi, with logo CST, BUTYL, AV tube
- Brand : MAUI
