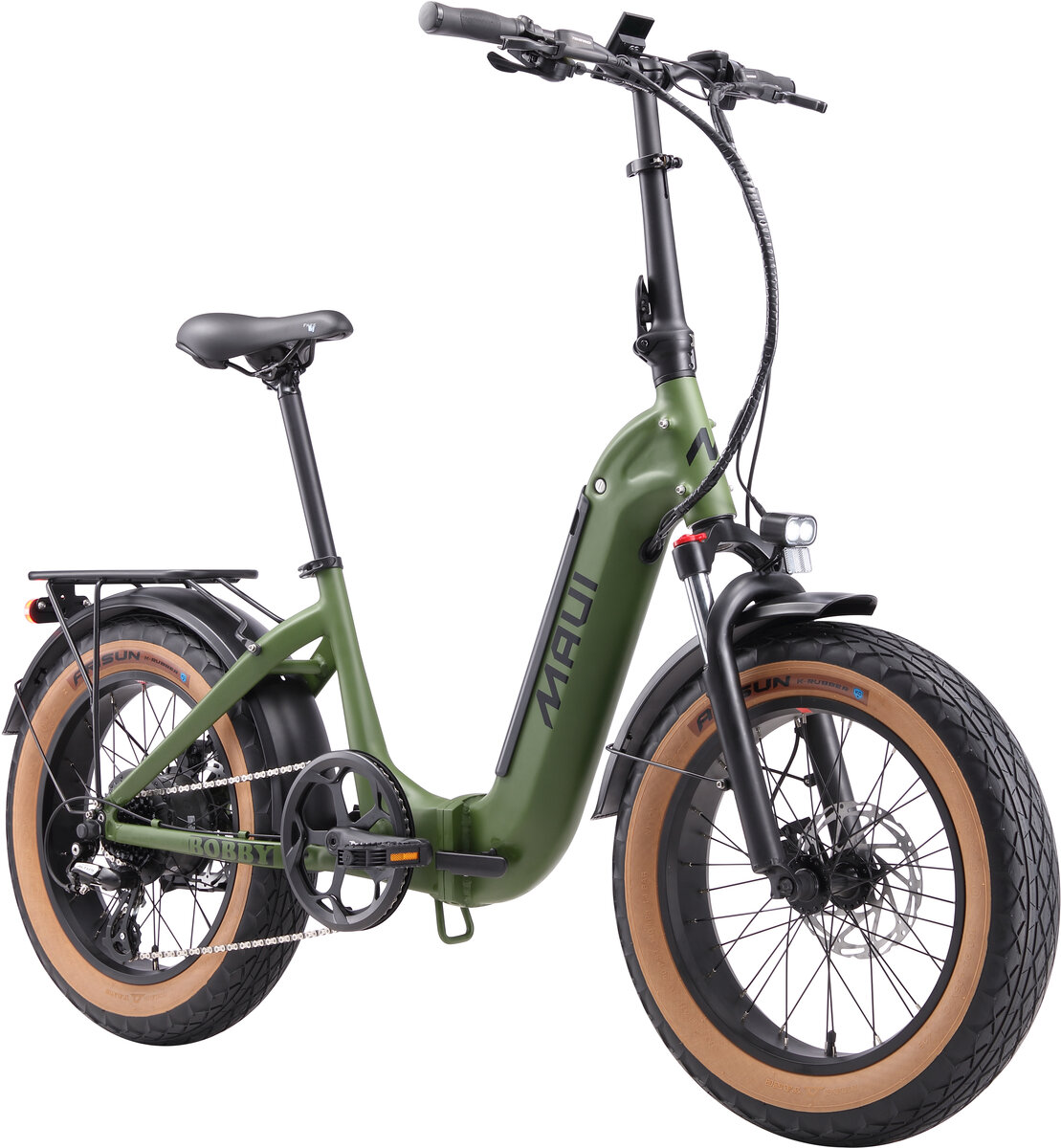

Maui BOBBY - 2025

Electric Bike Step-Thru 2025
A folding electric bike, the essential for city dwellers.

DESCRIPTION
The BOBBY: Maui Bikes’ exciting new creation! For 2025, this model features a sophisticated torque sensor that analyzes pedal pressure for perfectly adapted motor assistance with remarkable smoothness. This folding step-through bike combines a powerful 500W Bafang motor and quality Samsung battery, complemented by precise hydraulic brakes. Versatile by design, the BOBBY excels in both urban and trail settings thanks to its front suspension, wide 100 mm tires, and practical fenders — the ideal balance between performance and riding pleasure!

AUTONOMY : Up to 130 KM

RIDER HEIGHTS : 4’10’’ to 5’10’’

WEIGHT : 31kg

CHARGING TIME : 3-4h

TÜV Certified
Certified in accordance with UL 2849 / UL 2271

A SILENT FORCE THAT HELPS YOU GET THERE
Powerful yet quiet, the Bafang motor delivers satisfying flow whether you’re climbing or descending. Its 500W assistance takes the sting out of any ascent and puts a smile on any rider’s face.

ALWAYS IN FULL CONTROL
Ride fast and in control with premium hydraulic disc brakes. Experience great stopping power in moments you need it the most.


FEATURES
- 500W motor : Our BAFANG motor ensures powerful and controlled impulses for an optimal electric assistance.

- Torque sensor : A torque sensor on an e-bike is like a smart assistant for your pedals! It detects how hard you’re pushing and adjusts the motor’s power to match your effort. The harder you pedal, the more the motor kicks in, giving you a smooth, seamless ride that feels just like you’re flying without breaking a sweat. It’s all about making your ride feel effortless and fun!

- Hydraulic Brakes : Our hydraulic disc brakes for safe and quick stops.

- Dashboard : Our large LCD screen that displays your speed, battery status and odometer throughout your ride.

- Battery : Samsung Lithium Battery48V14AH

- Derailleur : Our SHIMANO Altus 8 speed derailleur.

- Light system : Our two LED lights, front and rear, for added safety during night rides.

- Luggage rack : Our practical luggage rack with a fastening system, for both city outings and hikes.

- Adjustable Fork : Our front fork with adjustable suspension to suit your needs.

- Saddle : Our comfortable seat for all your trips, short or long.


FRAMESET
- Frame : Alloy 20" step through frame with smooth welding. Integrated rear rack, fender mounts, Electronic Access Port. Removable battery with security lock.

- Fork : RST, guide, 20" susp. Alloy crown,alloy leg with lock

- Bike Weight : 31kg

- Weight Capacity : 135kg


DRIVETRAIN
- Shifters : SHIMANO 8-speed rapidfire

- Crank Set : PROWHEEL, Alloy, PRO-552PP-3

- Chain : KMC Z7

- Rear Derailleur : SHIMANO Altus 8 speed

- Cassette : SHIMANO 8-speed 12-28T


COMPONENTS
- Handlebar : Alloy bird type bar

- Grips : Non-slip, shock-absorbing with Alloy ring

- Stem : Alloy stem

- Seatpost : Alloy 27.2mm with quick release (350mm)

- Brake : TEKTRO, HD-E3520, hydraulic disc brake

- Rotors : 160mm


WHEELS
- Tires : CST 20" x 4"

- Rims : Alloy 20"


ELECTRIC TECHNOLOGY
- Motor : BAFANG, RM G020.500.DC, 48V/500W

- Controller : 48V/500W/18A

- Battery Type : SAMSUNG, 48V, 14AH, battery cell, removable with security lock

- Battery Capacity : 5000 mAh

- Range : Up to 130km subject to ambient temperature, rider weight and ride style

- Power Assist : 5 Levels of power assisted pedaling

- Throttle : KAHUA, EA10 thumb throttle 36V

- Battery Charger : 48V Smart charger, LED status, with CE certificate


ACCESSORIES (included)
- Display : Front & Rear LED Lights

- Front & Rear Fenders : Rear Integrated Cargo Rack

- Kickstand : Pedals
